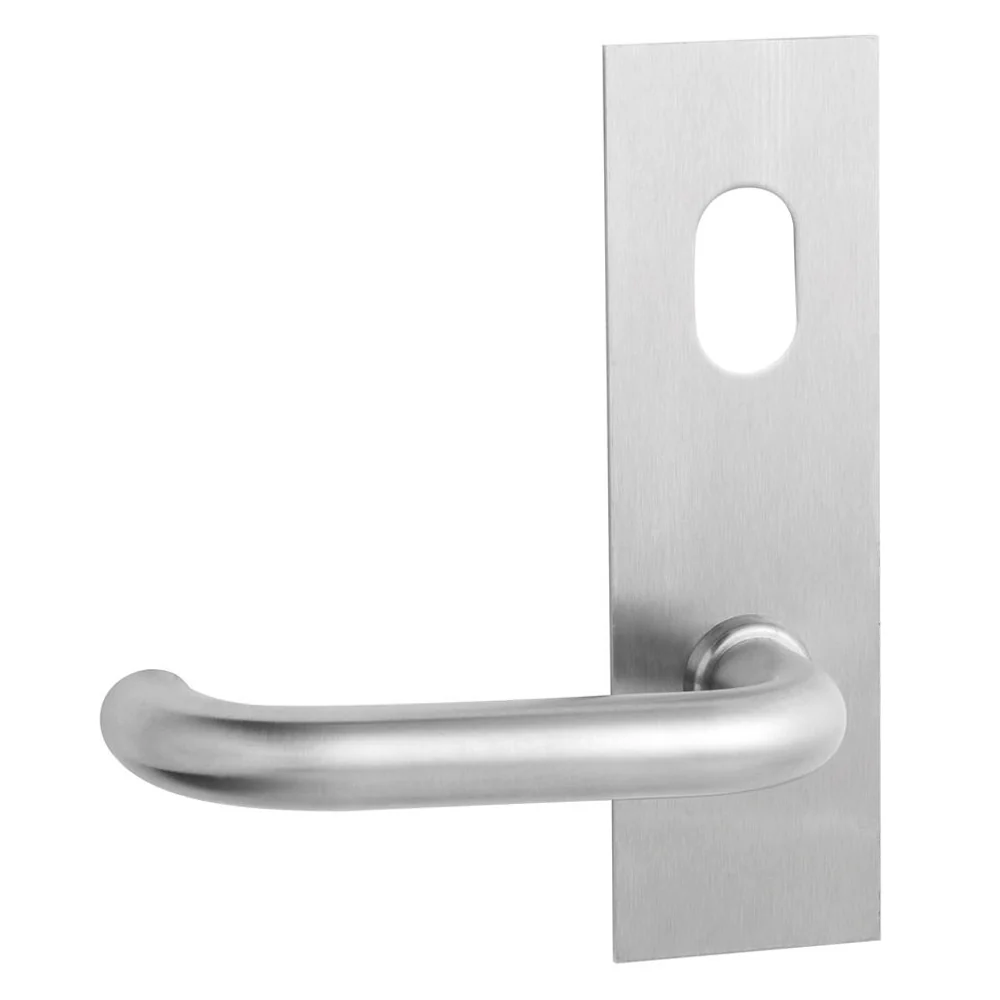

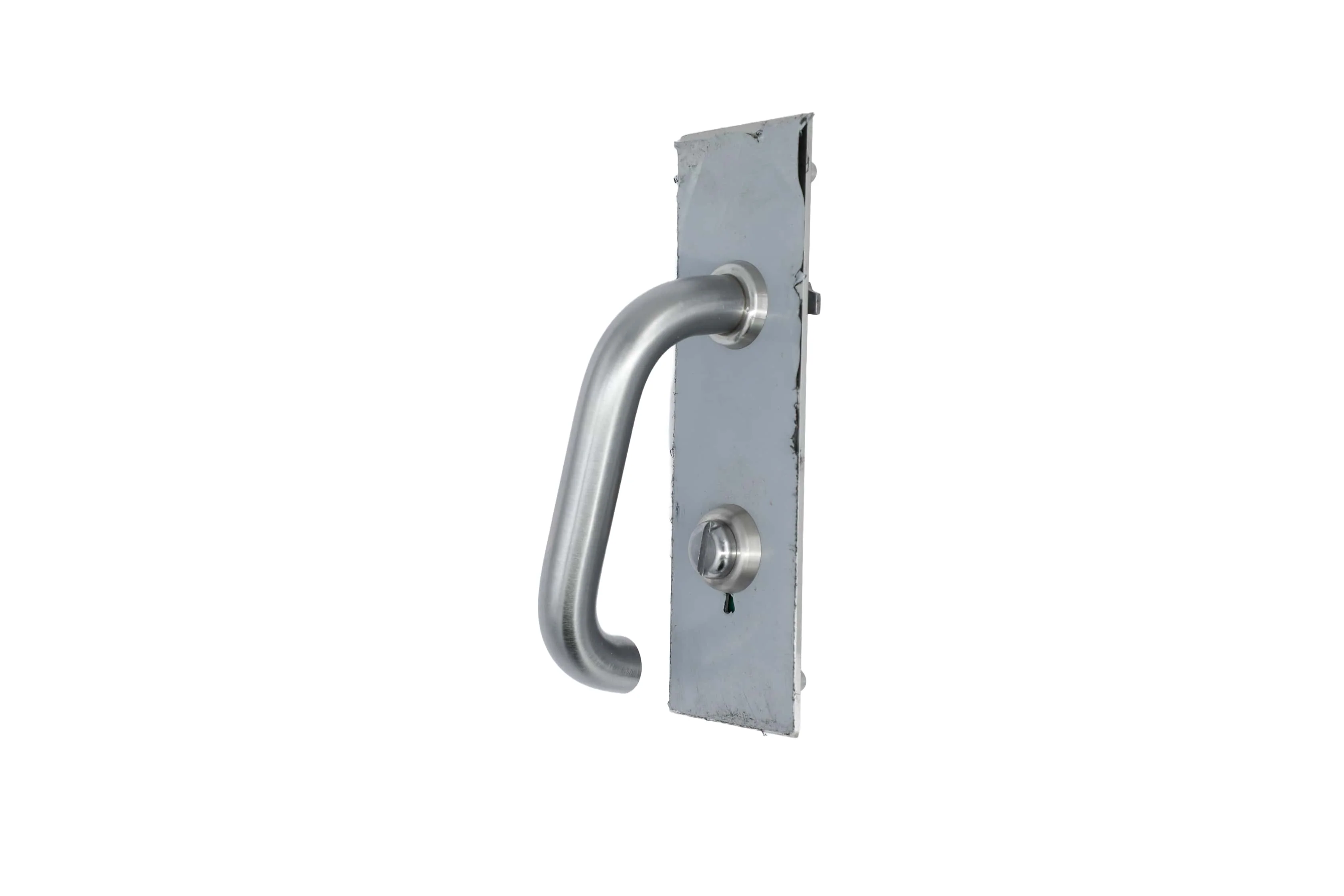

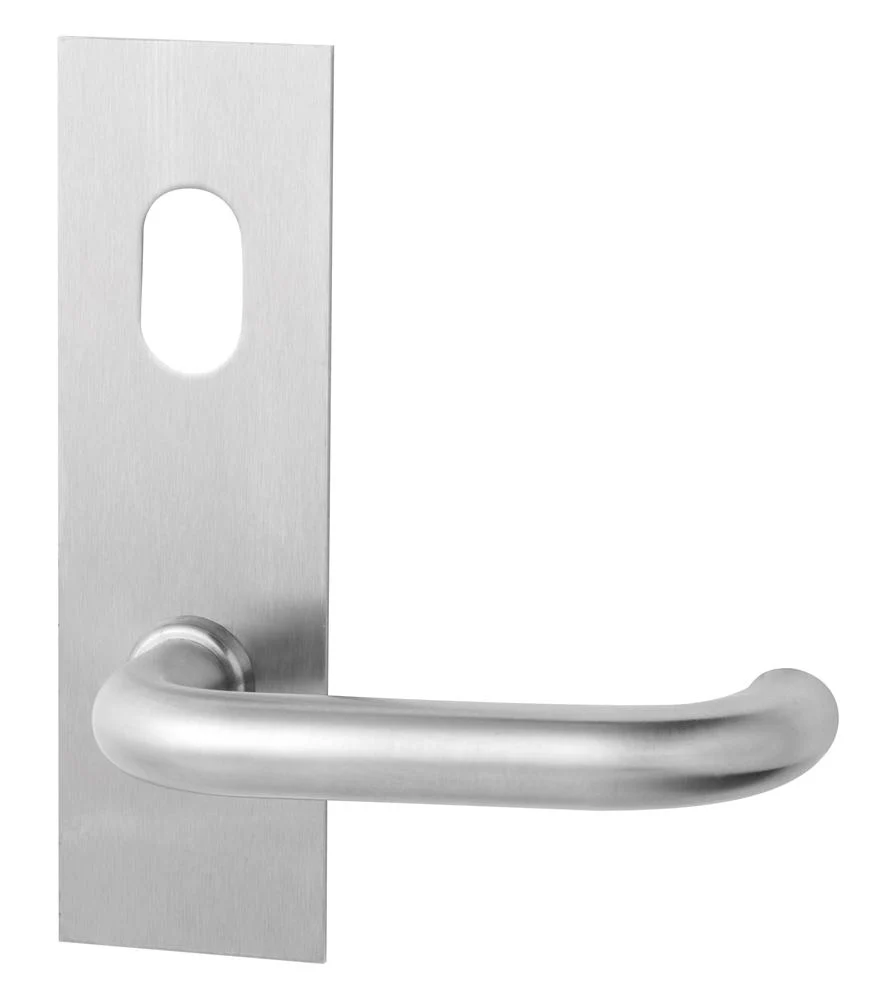

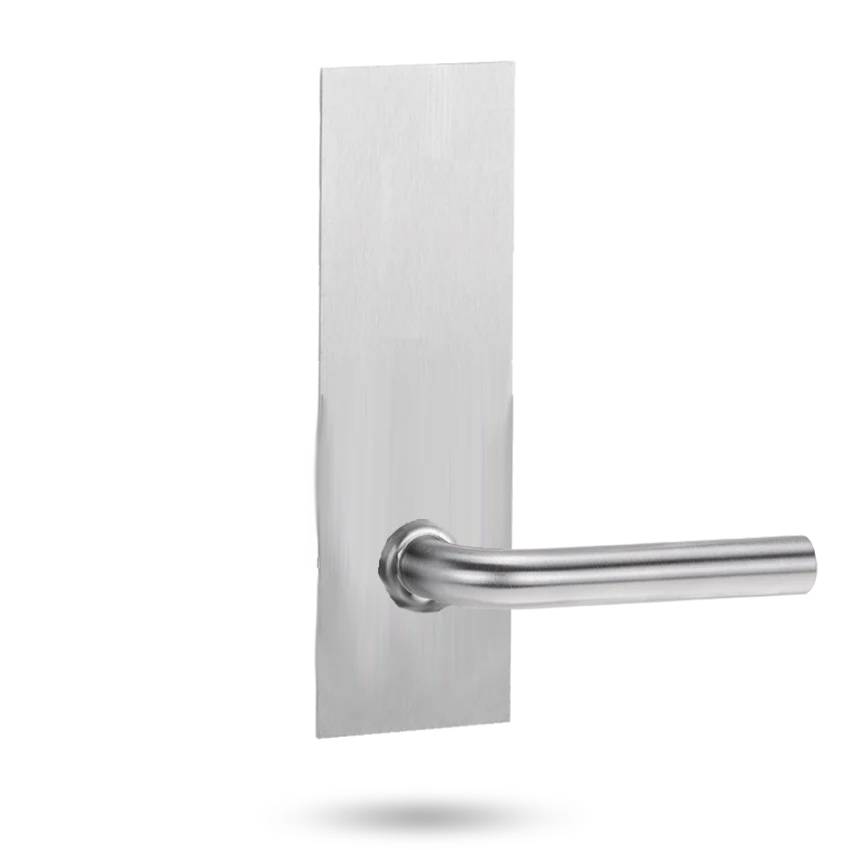

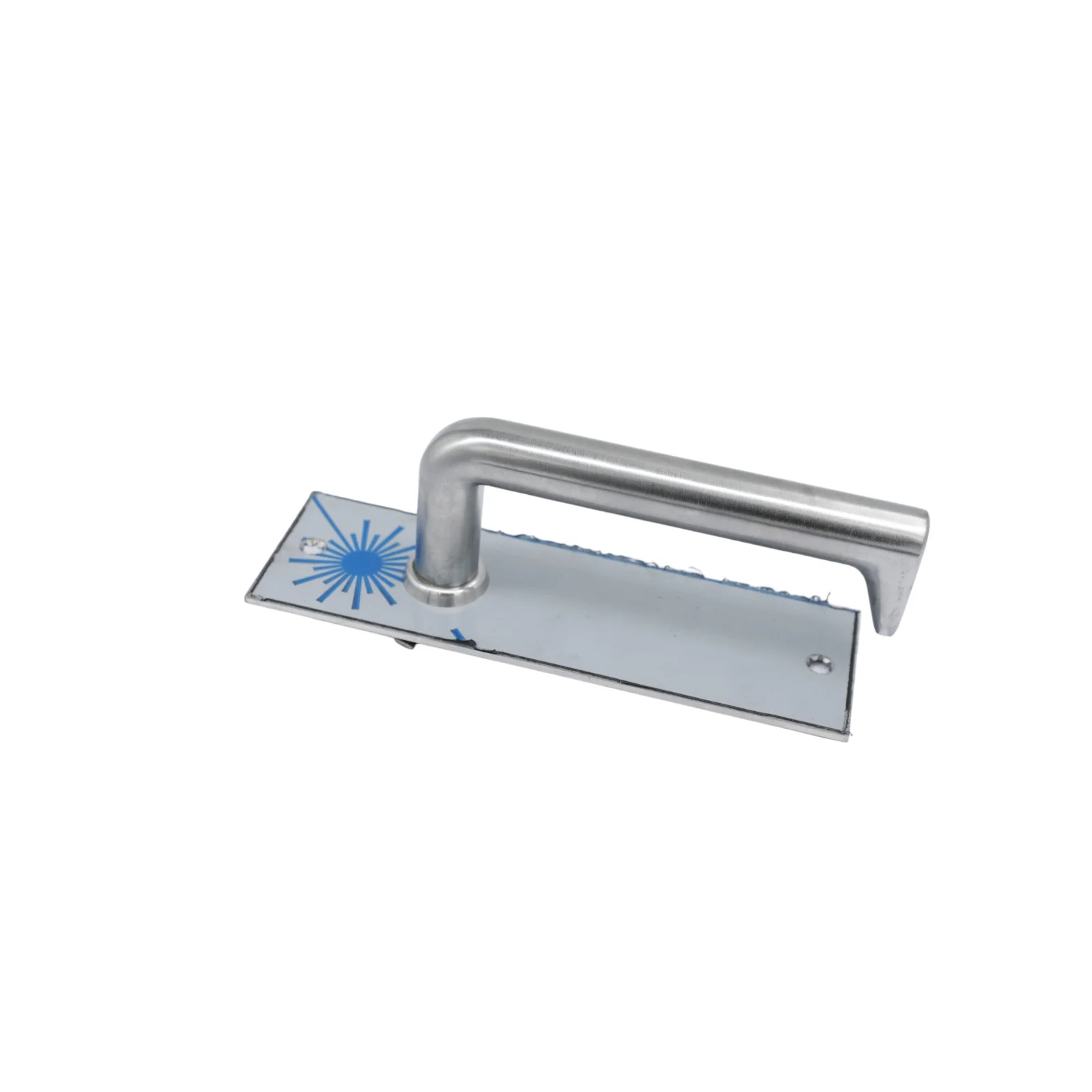

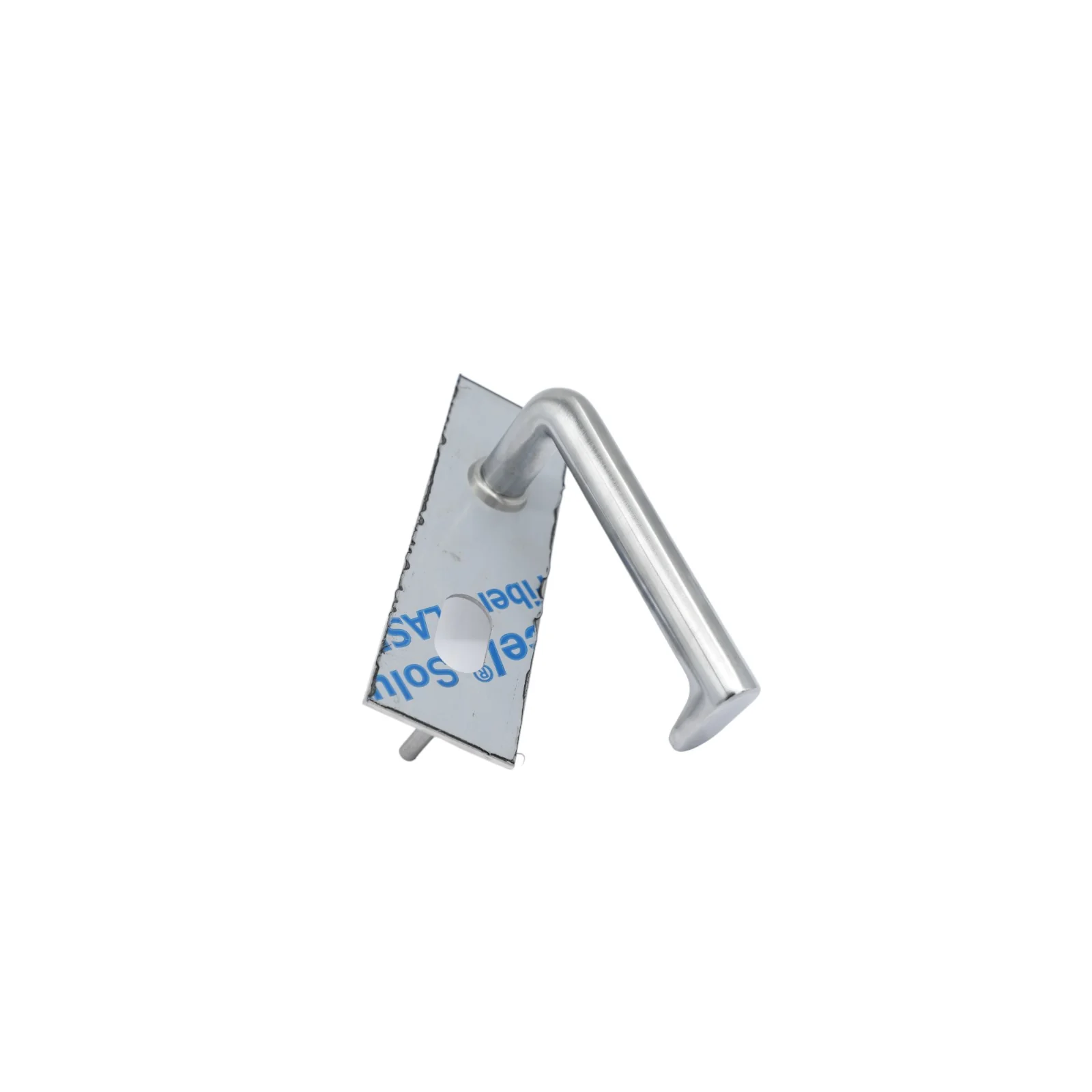

224 Exterior Plate With Cylinder Hole & Lever / Fixed / LH or RH

The Lockwood 224 Series Door Furniture features durable stainless steel plate construction with a modern square-end design. Concealed-fixed plates include internal-threaded studs positioned top and bottom, while visible-fixed plates incorporate matching countersunk holes for secure back-to-back installation through the door.

The Lockwood Overture Lever enhances the plate with its refined shape, offering a comfortable feel and a visually striking introduction.

Application

Designed for use with Lockwood 3770 Selector and 3570 Synergy Series Mortice Locks.

Features

• Lever: Lockwood 59 (varies depending on selected variant)

• External plate

• Lever only

• Cylinder pitch: 64mm

• Fixing centres: 148mm

• Concealed fixings

• Non-handed

• Stainless steel construction

• Suits door thickness 35–45mm

• For 45–55mm doors, specify long fixing screws SP2000-208

• Supplied in trade pack

Dimensions

• Height: 162mm

• Width: 50mm

• Depth: 2mm

Lever Dimensions

• Length: 121mm

• Projection: 57.5mm

• Finger clearance: 51mm

Available Variants

• Privacy Indicator – Emergency Turn Only

• Cylinder Hole – Fixed Lever 144 – LH

• Cylinder Hole – Fixed Lever 144 – RH

• Cylinder Hole – Lever 102

• Cylinder Hole – Lever 104

• Cylinder Hole – Lever 144

• Cylinder Hole – Lever 166

• Lever 118

• Lever 144

• Lever 166

• Privacy Indicator – Emergency Turn – Lever 101

• Privacy Indicator – Emergency Turn – Lever 111

• Privacy Indicator – Emergency Turn – Lever 112 – Selector

• Privacy Indicator – Emergency Turn – Lever 118

• Privacy Indicator – Emergency Turn – Lever 144

• Privacy Indicator – Emergency Turn – Lever 166

• Privacy Indicator – Emergency Turn – Lever 70 – Selector

• Exterior Plate

• Exterior Plate – Knob 20

• Exterior Plate – Lever 59

• Exterior Plate – Lever 77

• Exterior Plate – Lever 90

• Exterior Plate – Lever 96

• Exterior Plate – Lever 98

• Exterior Plate – Fixed Lever 96 – LH

• Exterior Plate – Fixed Lever 96 – RH

• Exterior Plate – Fixed Lever 98 – LH

• Cylinder – Fixed Lever 70 – LH

• Cylinder – Fixed Lever 70 – RH

• Cylinder – Fixed Lever 90 – LH

• Cylinder – Fixed Lever 90 – RH

• Cylinder – Fixed Lever 96 – LH

• Cylinder – Fixed Lever 96 – RH

• Cylinder – Fixed Lever 97 – LH

• Cylinder – Fixed Lever 98 – RH

• Push Outline

• Cylinder Hole – Lever 101

• Cylinder Hole – Lever 104

• Cylinder Hole – Lever 131

• Cylinder Hole – Lever 178

• Emergency Turn – Lever 104

• Lever 104

• Lever 166

• Exterior Plate – Lever 123

• Exterior Plate – Lever 96
