224 Exterior Plate /Cylinder Hole / Emergency Turn & Lever

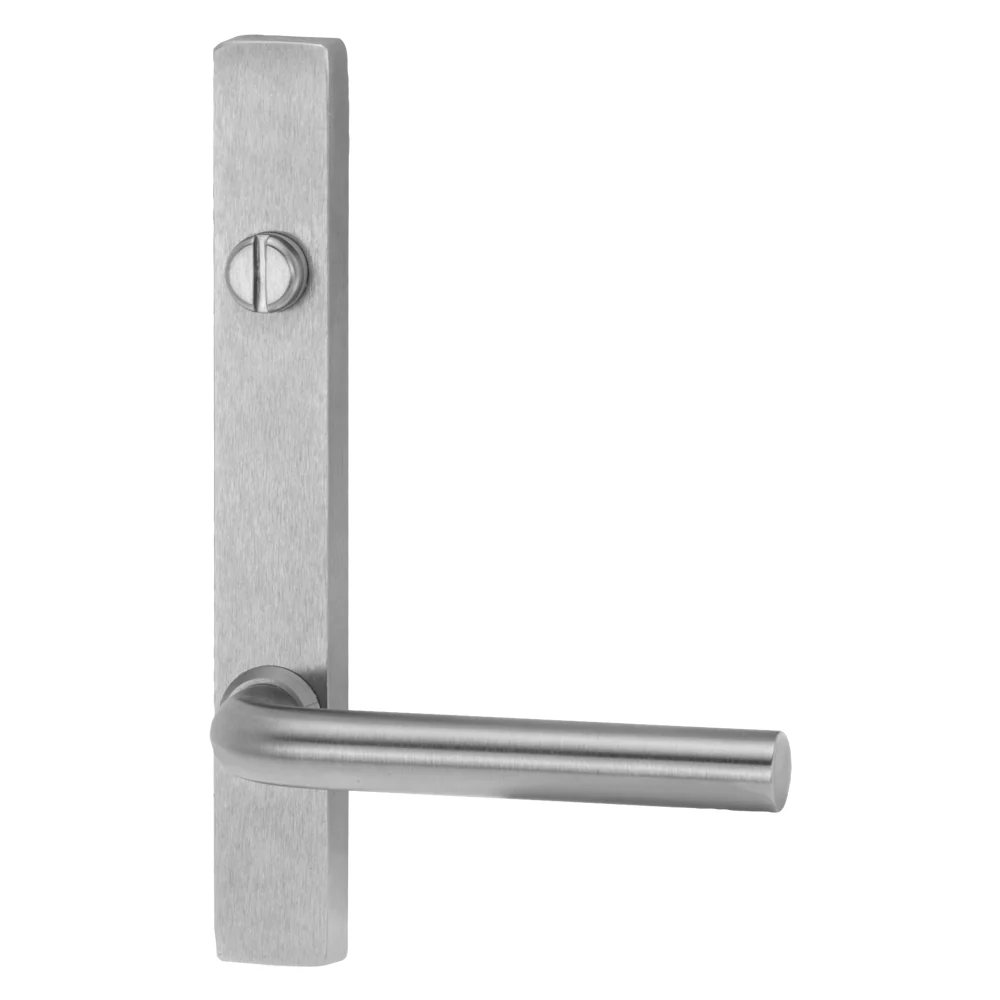

The Lockwood 224 Series Artefact Rectangular Plate Door Furniture is crafted from high-quality stainless steel with clean, square-end plate styling. Concealed-fixed plates feature internal-threaded studs at the top and bottom, while visible-fixed plates include corresponding countersunk holes, installed back-to-back through the door.

The Lockwood Overture lever, with its subtle curves and refined feel, offers a stylish and comfortable grip, enhancing the overall design of the plate furniture.

Application

Designed for use with the Lockwood 3770 Selector and 3570 Synergy Series Mortice Locks.

Features

• Lever: Lockwood 59 (varies per selected variant)

• External plate design

• Cylinder hole (or emergency turn, depending on variant)

• Cylinder pitch: 64mm

• Fixing centres: 148mm

• Concealed fixings

• Non-handed

• Stainless steel construction

• Suits door thickness 35–45mm

• For doors 45–55mm thick, specify long fixing screws SP2000-208

• Supplied in trade pack

Plate Dimensions

• Height: 162mm

• Width: 50mm

• Depth: 2mm

Lever Dimensions

• Length: 121mm

• Projection: 57.5mm

• Finger clearance: 51mm

---

Available Variants

• Cylinder Hole – 101 Lever

• Cylinder Hole – 111 Lever

• Cylinder Hole – 118 Lever

• Cylinder Hole – 155 Lever

• Cylinder Hole – 20 Knob

• Cylinder Hole – 59 Lever

• Cylinder Hole – 70 Lever

• Cylinder Hole – 77 Lever

• Cylinder Hole – 90 Lever

• Cylinder Hole – 96 Lever

• Cylinder Hole – 97 Lever

• Cylinder Hole – 98 Lever

• Cylinder Hole – 98 Lever – 45° Downward – LH

• Cylinder Hole – LED – 96 Lever

• Emergency Turn – 20 Knob

• Emergency Turn – 70 Lever

• Emergency Turn – 96 Lever

• Guarded Cylinder Hole – 96 Lever

• LED – 96 Lever

• P1 – Pull Handle

• Privacy Indicator – Emergency Turn – 59 Lever

• Privacy Indicator – Emergency Turn – 70 Lever

• Privacy Indicator – Emergency Turn – 77 Lever

• Privacy Indicator – Emergency Turn – 77 Lever – Selector

• Privacy Indicator – Emergency Turn – 90 Lever

• Privacy Indicator – Emergency Turn – 96 Lever

• Privacy Indicator – Emergency Turn – 96 Lever – Selector

• Privacy Indicator – Emergency Turn – 98 Lever

• Privacy Indicator Turn – 96 Lever

• Privacy Indicator Turn – 96 Lever – Selector

• Turn – 111 Lever

• Turn – 70 Lever

• Turn – 96 Lever

• Turn – 98 Lever

• Cylinder Hole – LED – 59 Lever – Interior Plate

• Cylinder Hole – LED – 96 Lever – Interior Plate

• Plain Plate – Cylinder

• Plain Plate – Dual Cylinder

• Plate – Lever

• Plate – Lever 155
