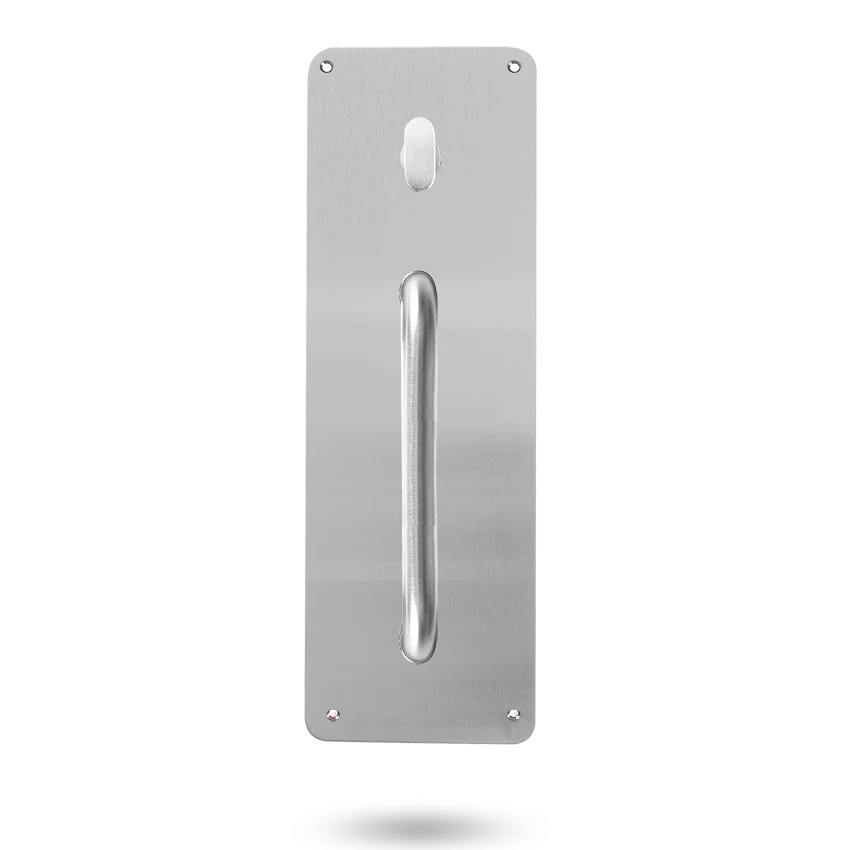

215 Interior Plate – Push / Outline / Full Infill / P2-P3 Handles

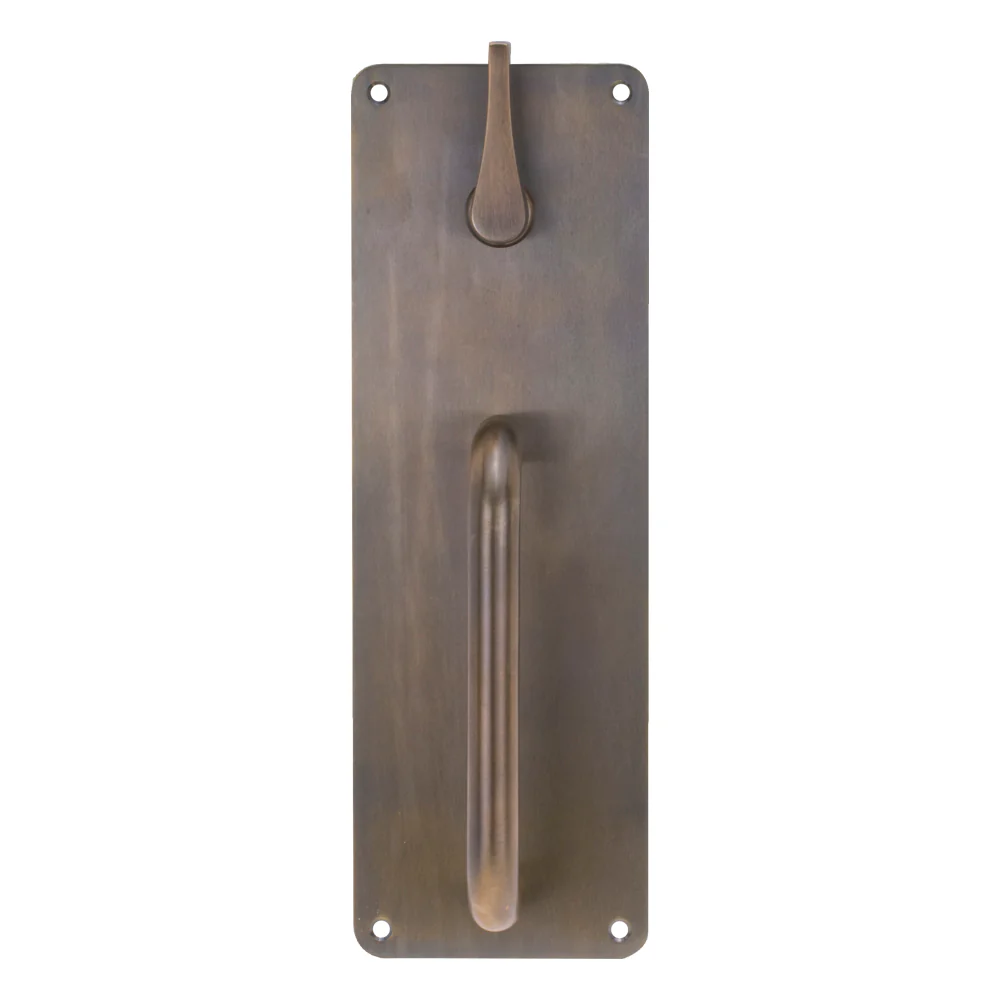

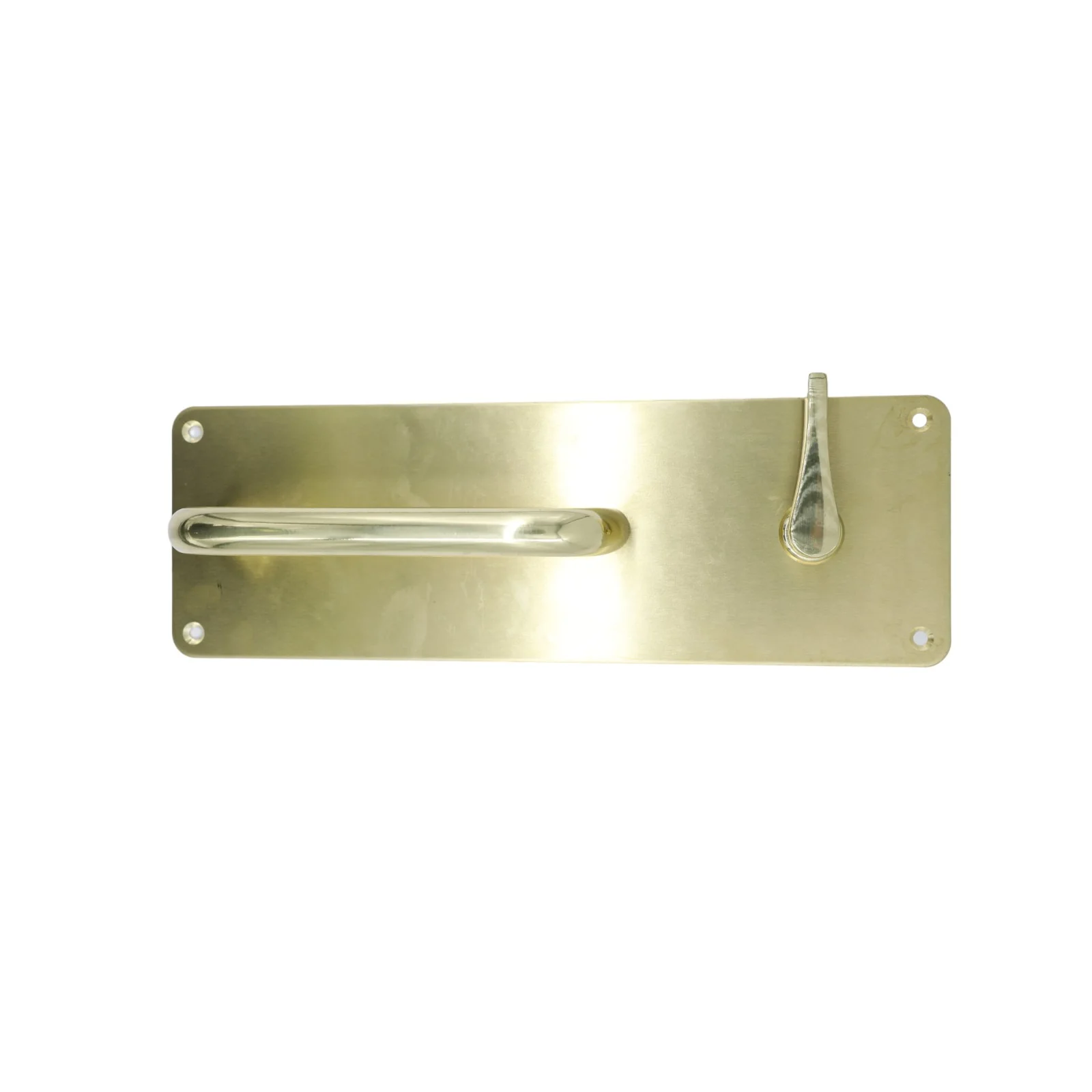

The Lockwood 214 Series Door Furniture features robust stainless steel or brass plates with 10mm radius corners. Concealed fixed plates include studs with internal threads at each corner, while visible plates incorporate countersunk holes for back-to-back installation through the door. Designed for use with Lockwood 3570 Synergy and 3770 Selector Series Mortice Locks.

Function / Handle Selection

Certain functions require specific handles. Screw centre distances vary depending on the handle type selected for each function.

Features

• Internal plate with visible fixing

• Cylinder function (cylinder not included)

• Non-handed

• 10mm radius corners

• Stainless steel construction

• Disabled Access – AS1428.1 compliant

• Fire tested up to 4 hours on door assemblies per AS1905.1 2005 – Part 1: Fire Resistant Doorsets

• Suits door thickness 35–45mm standard (for 45–55mm doors, specify long fixing screws SP2000-208)

• Supplied in trade pack

• Polished finish

• Australian designed

Dimensions

• Length: 300mm

• Width: 100mm

• Thickness: 2mm

• Handle Diameter: 17.5mm

• Finger Clearance: 40mm

---

Available Variants

• Push Full Infill

• Push Outline

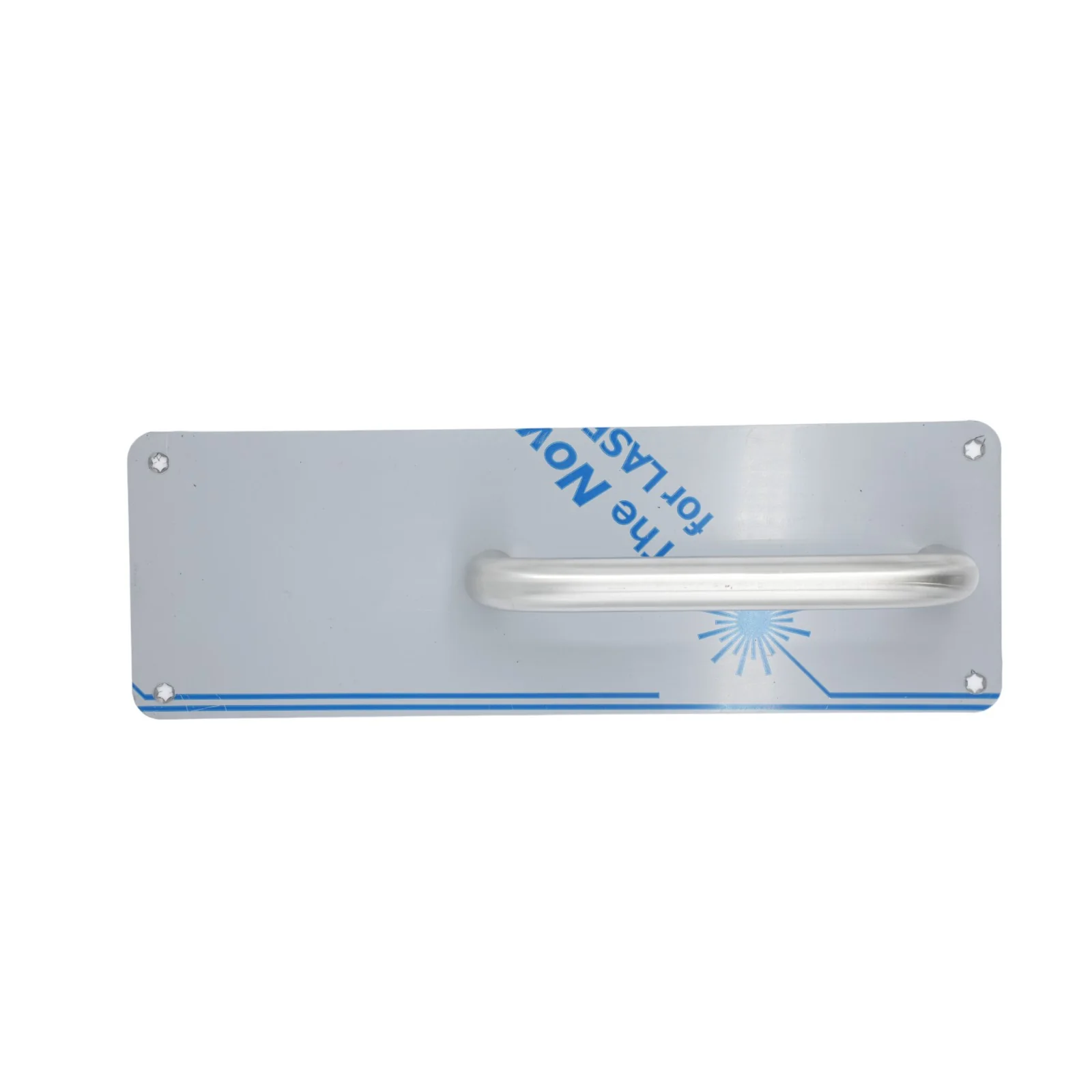

• Push Outline – P2 Pull Handle

• Push Outline – P3 Pull Handle

• Cylinder Hole – P1 Pull Handle – Outline Eng Pull

• Cylinder Hole – P2 Pull Handle – Outline Eng Pull

• Cylinder Hole

• Cylinder Hole – Full Infill – Push Text

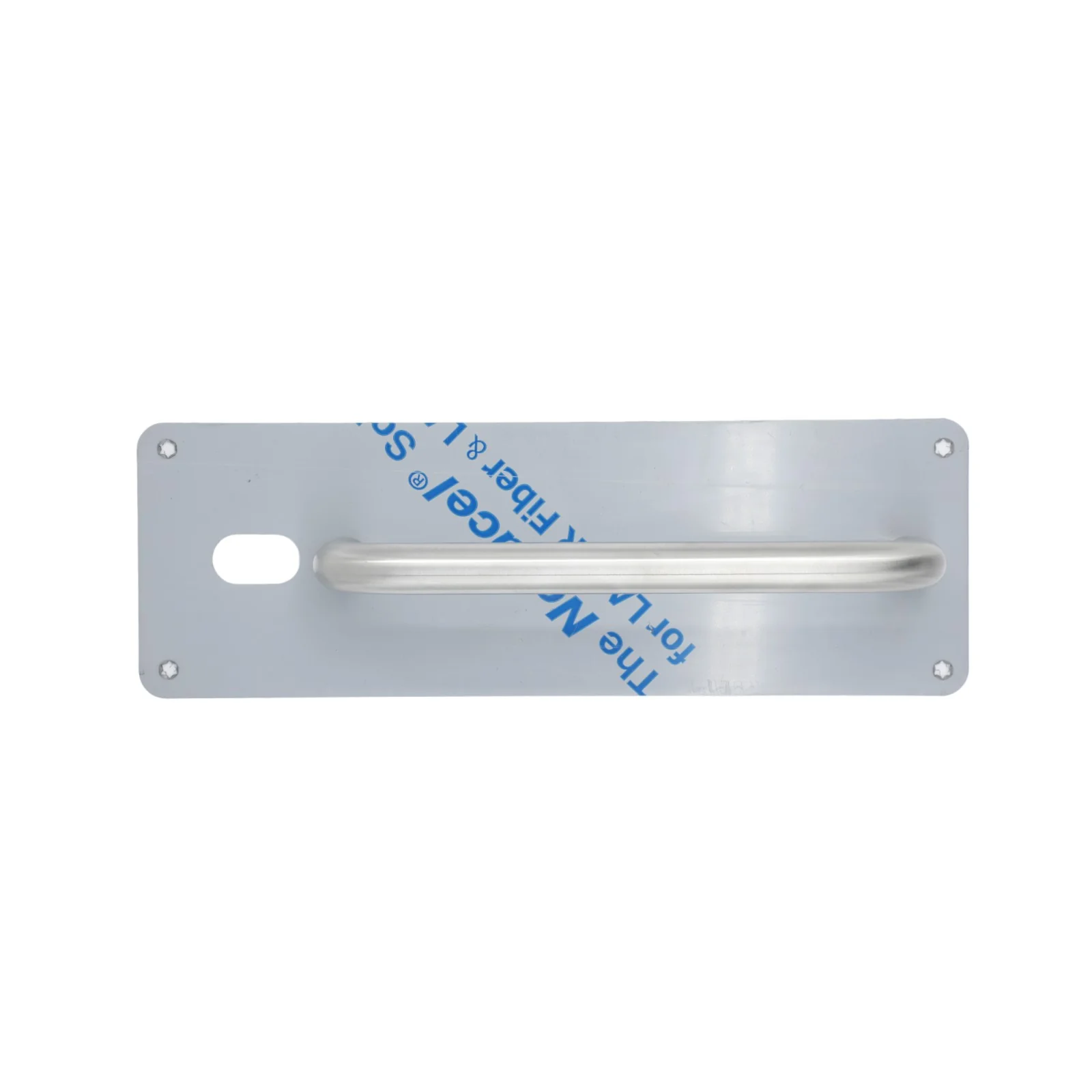

• Cylinder Hole – P1 Pull Handle

• Cylinder Hole – P2 Pull Handle

• Cylinder Hole – P3 Pull Handle

• Disabled Turn – P2 Pull Handle – LH

• Disabled Turn – P2 Pull Handle – Pentagon – LH

• Disabled Turn – P2 Pull Handle – Pentagon – RH

• Disabled Turn – P2 Pull Handle – RH

• Disabled Turn – P3 Pull Handle – LH

• Disabled Turn – P3 Pull Handle – RH

• Disabled Turn – LH

• Disabled Turn – Pentagon – LH

• Disabled Turn – RH

• Disabled Turn – Pull Outline – P1 Pull Handle – LH

• Disabled Turn – Pull Outline – P1 Pull Handle – RH

• Offset – P2 Pull Handle

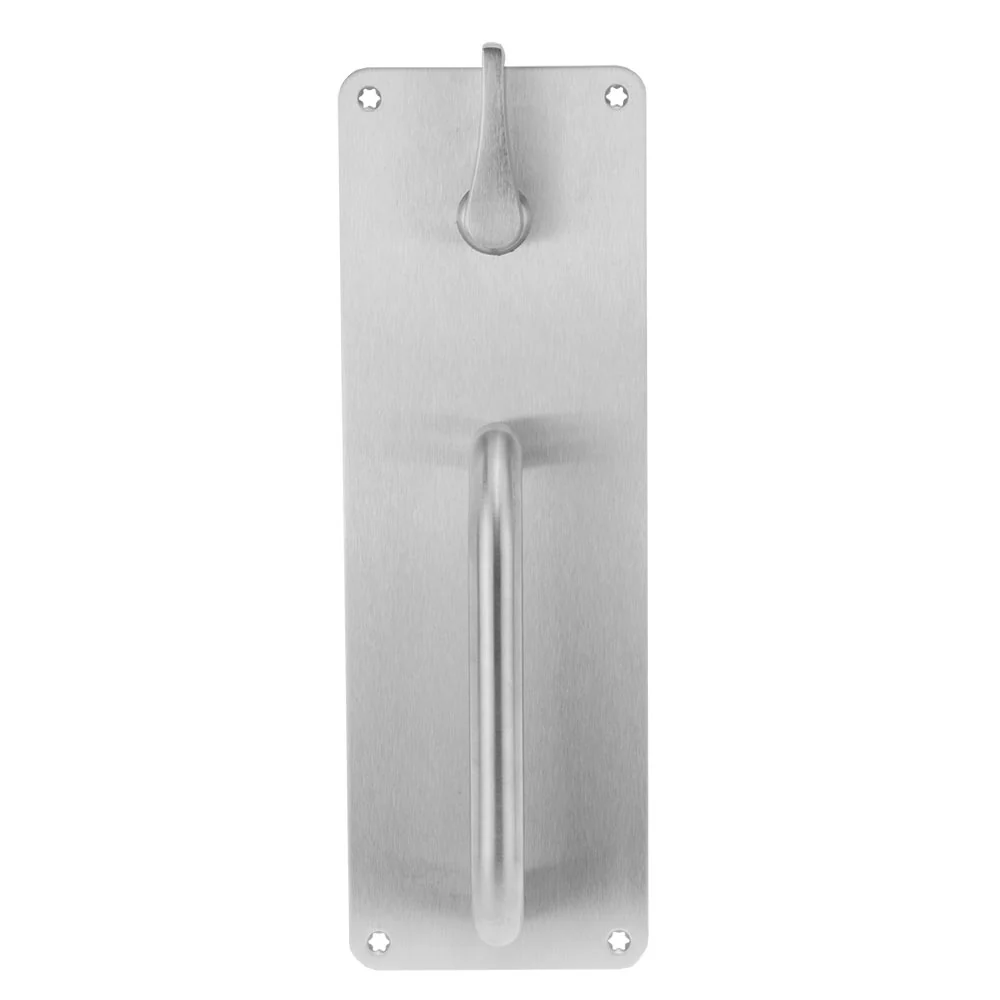

• Privacy Indicator – Disabled Turn – P2 Pull Handle – RH

• Privacy Indicator – Emergency Turn – P2 Pull Handle

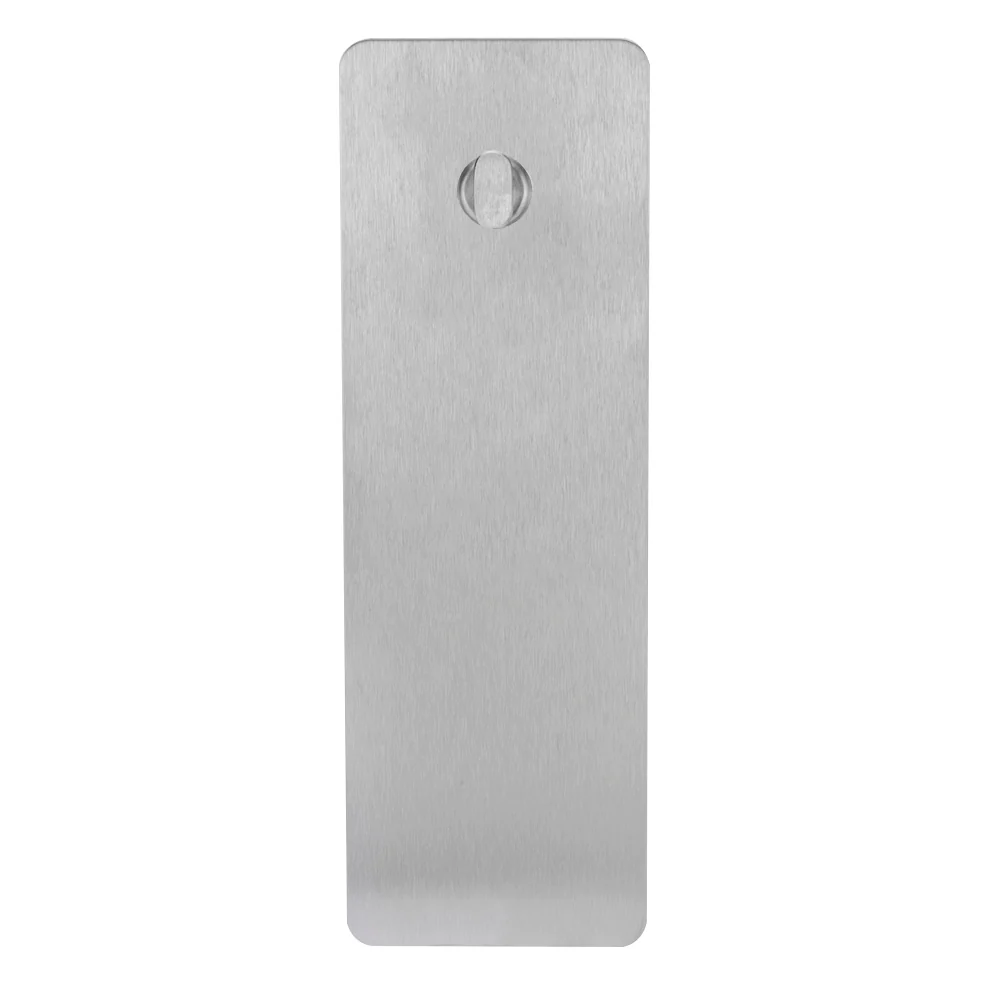

• Turn

• Turn – P1 Pull Handle

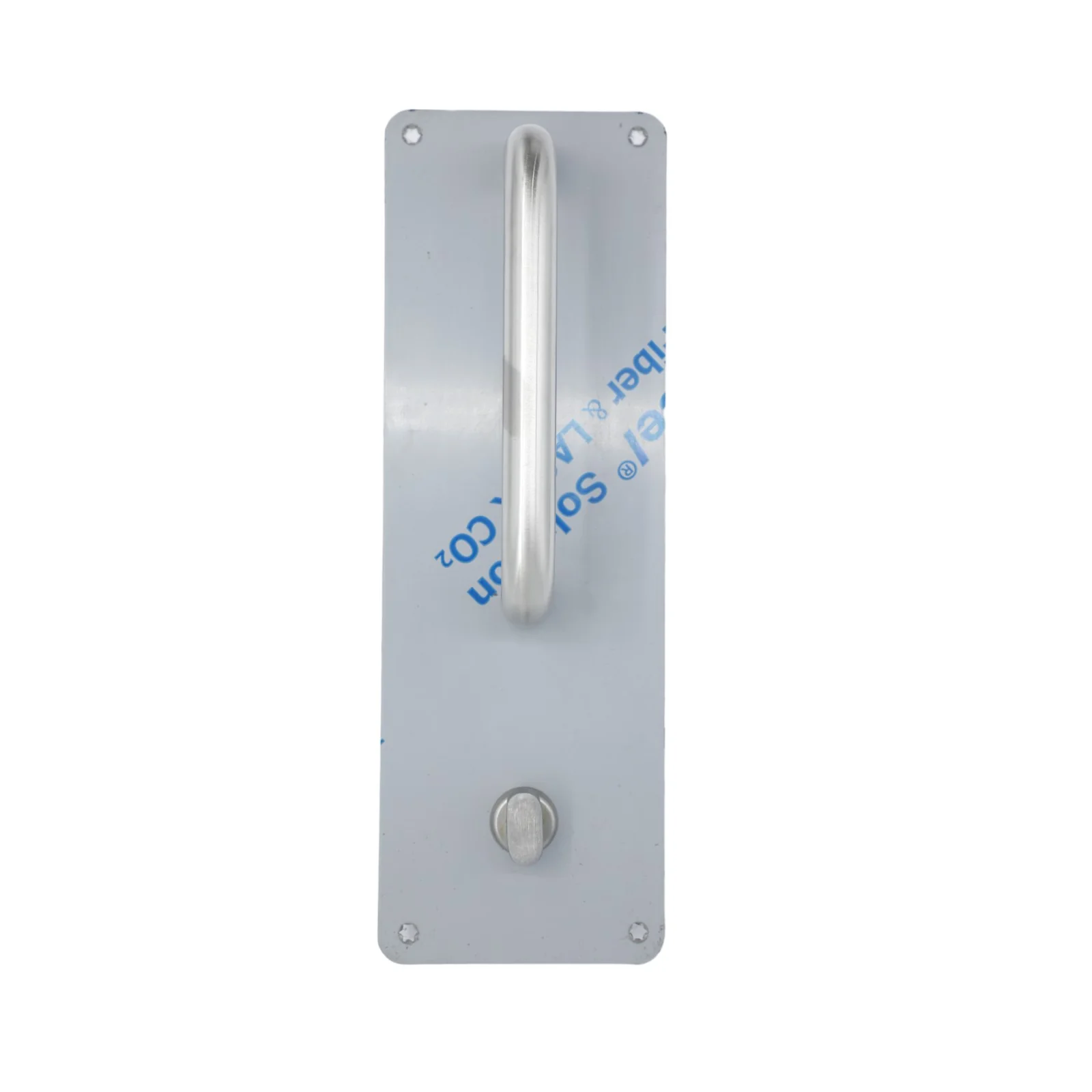

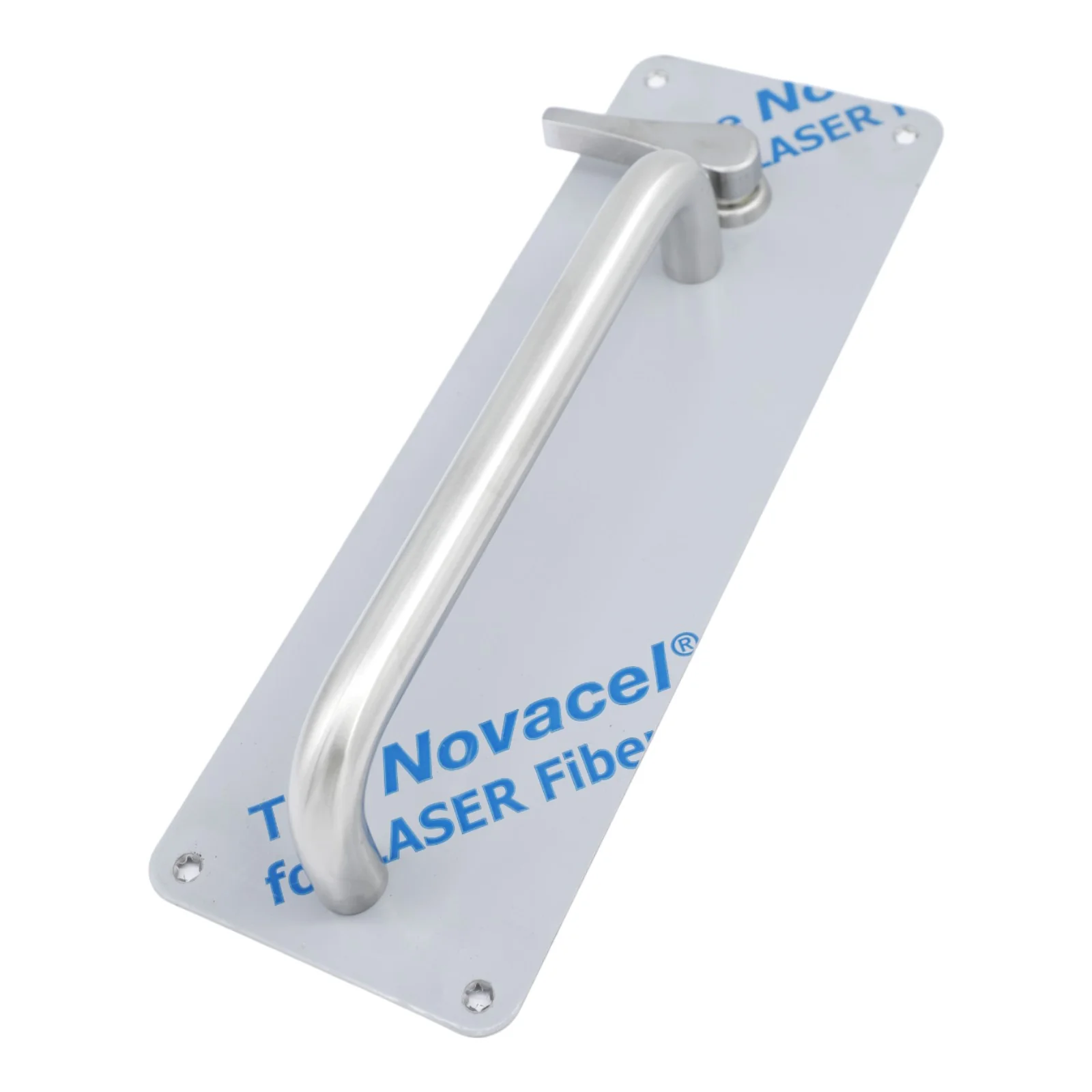

• Turn – P2 Pull Handle

• Turn – P3 Pull Handle

• Push Pull – Full Set – Visible Fix – PK=10

• TPSeries Shackle – Spring – PK=100

• TPSeries Shackle – 25mm Brass – 6.4mm Dia – PK=10

• TPSeries Shackle – 50mm Brass – 6.4mm Dia – PK=10
