203 Series Plates – Full Infill, Standard, Cyl Hole & Handle Variants

The Lockwood Artefact range in Aluminium, Brass, and Stainless Steel offers architects and specifiers a complete selection of slimline door furniture plates. Suitable for public, commercial, industrial, and institutional buildings, these plates deliver high-grade, durable fittings. The Artefact range provides multiple functional options, with engraving available to suit most requirements.

The 202 Series Door Furniture features a 162mm square plate with 10mm radius corners. Concealed fixed plates include studs with internal threads at each corner, while visible plates feature countersunk holes for secure back-to-back installation through the door.

Application

Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks, as well as latch and Push & Pull doors.

Features

• Internal plate only

• Visible fixings at four points (screws not included)

• Push symbol included

• Non-handed

• Fire rated up to 2 hours

• Supplied in trade pack

Plate Dimensions

• 162mm x 162mm x 2mm

• Cylinder pitch: 64mm

Materials

• Aluminium / Brass / Stainless Steel

Door Thickness

• 35 to 45mm standard

• For doors 45 to 55mm thick, specify long fixing screws SP2000-208

• Minimum 40mm for flush pulls back-to-back

Available Variants

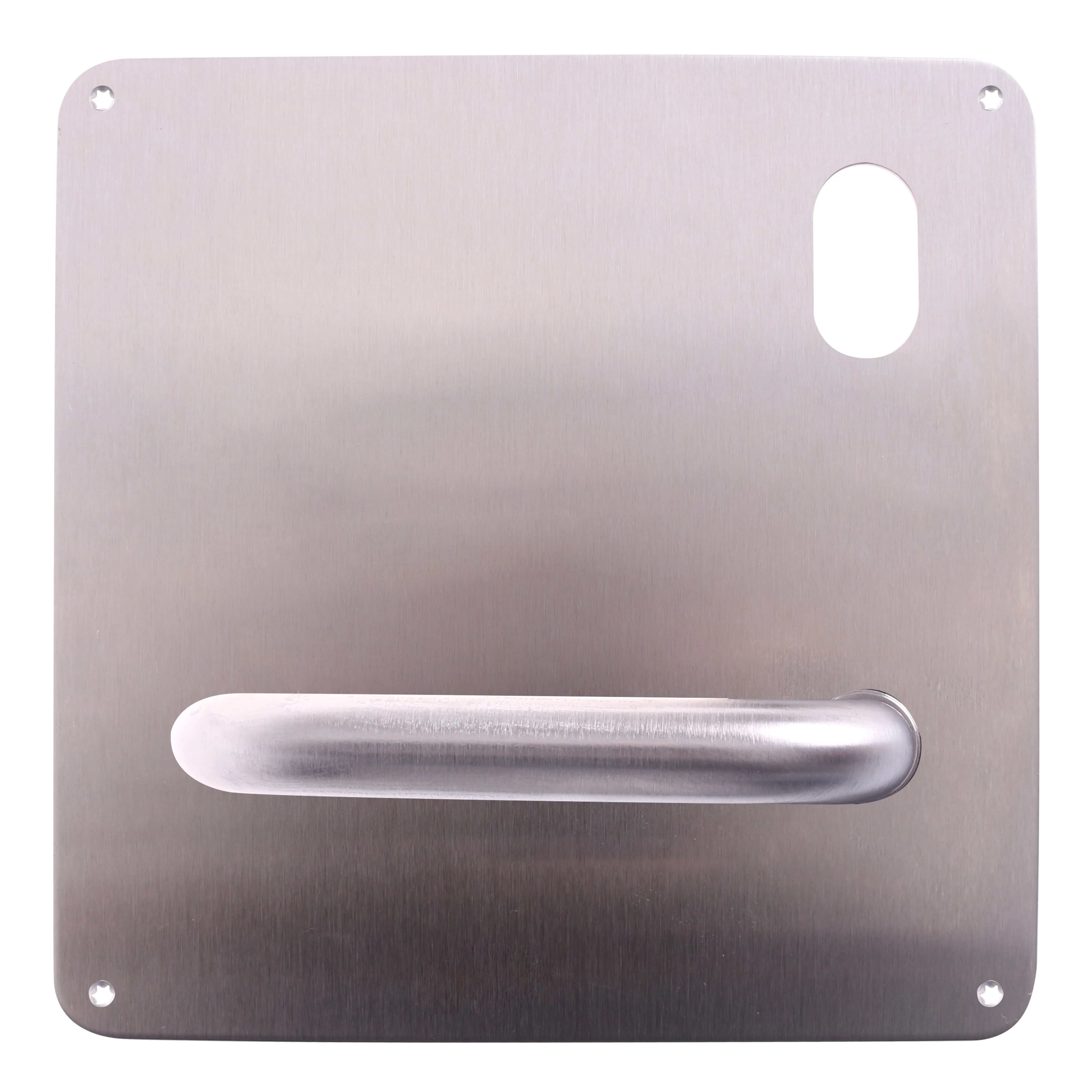

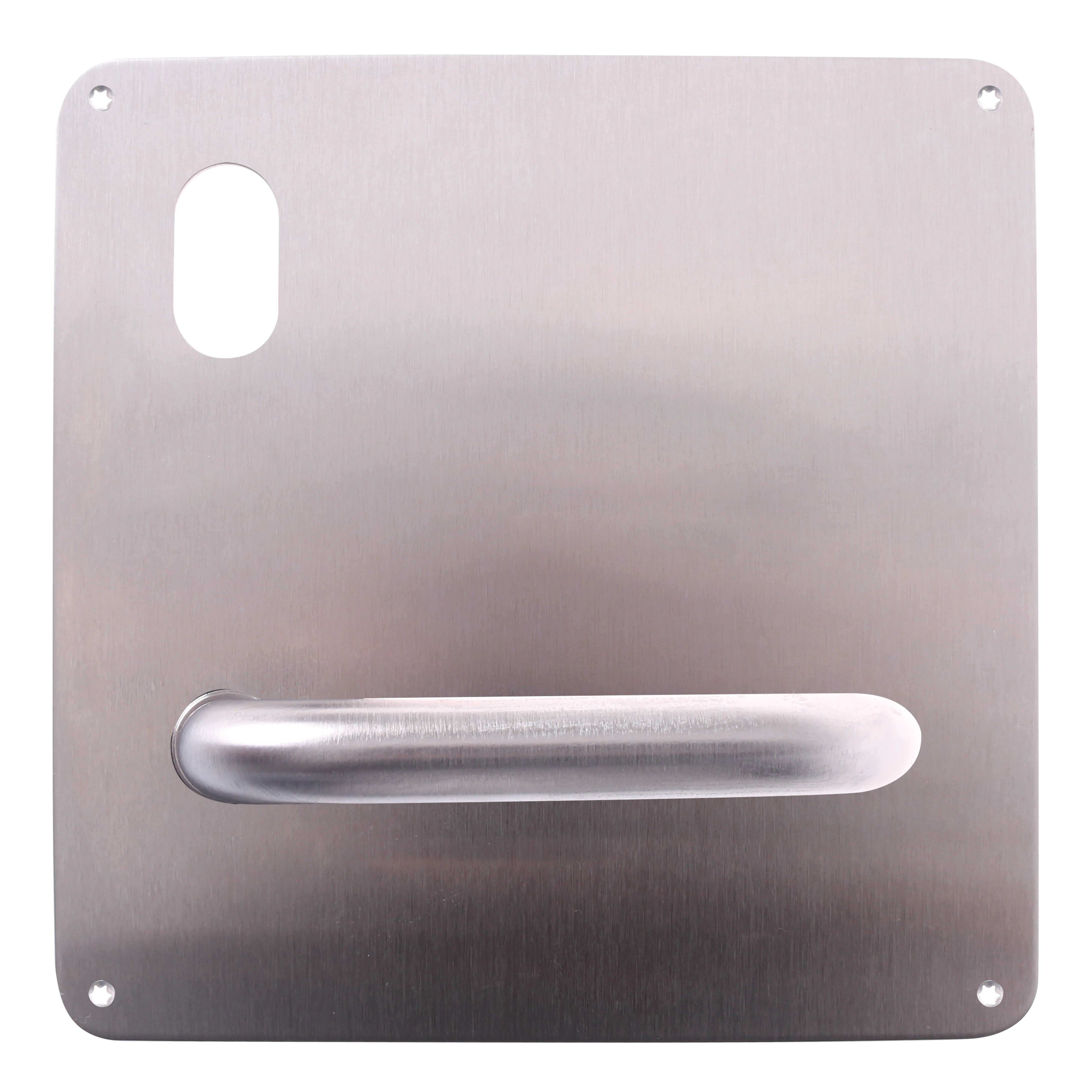

Cylinder Hole / Lever Variants

• Cylinder Hole – 77 Lever – LH

• Full Infill – Cylinder Hole – 77 Lever – RH

• Misc Eng – Cylinder Hole – 96 Lever – LH

• Misc Eng – Cylinder Hole – 96 Lever – RH

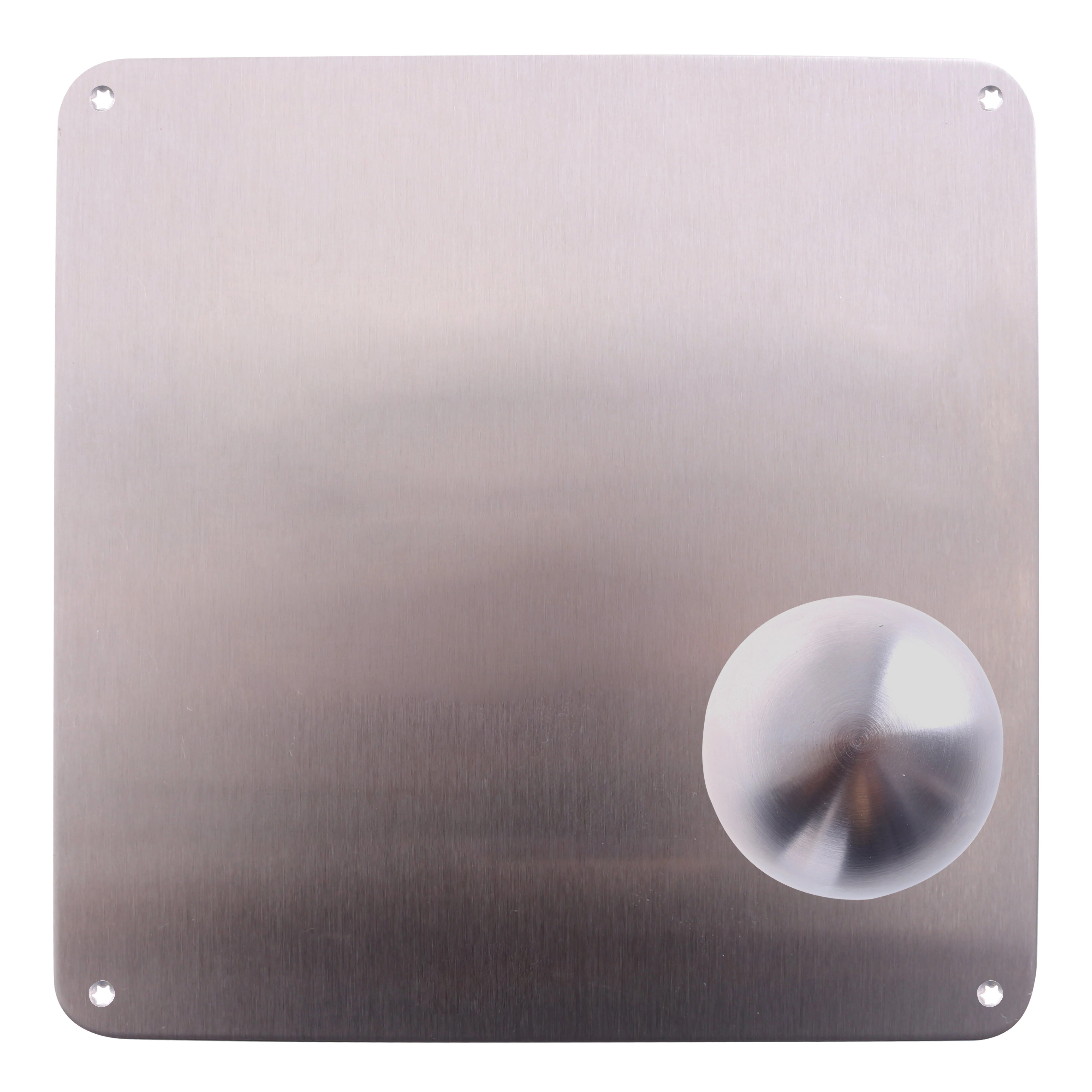

Fixed Knob Variants

• Fixed 20 Knob – LH

• Fixed 20 Knob – RH

• 20 Knob – LH

• 20 Knob – RH

Disabled Access / Selector Variants

• Dis ACC Turn – 102 Lever – LH

• Dis ACC Turn – 102 Lever – RH

• Dis ACC Turn – 111 Lever Selector – LH

• Dis ACC Turn – 112 Lever Selector – RH

• Dis ACC Turn – 118 Lever – LH

• Dis ACC Turn – 118 Lever – RH

• Dis ACC Turn – 118 Lever Selector – LH

• Dis ACC Turn – 118 Lever Selector – RH

• Dis ACC Turn – 142 Lever – LH

• Dis ACC Turn – 142 Lever – RH

• Dis ACC Turn – 70 Lever Selector – LH

• Dis ACC Turn – 70 Lever Selector – RH

• Dis ACC Turn – 90 Lever Selector – LH

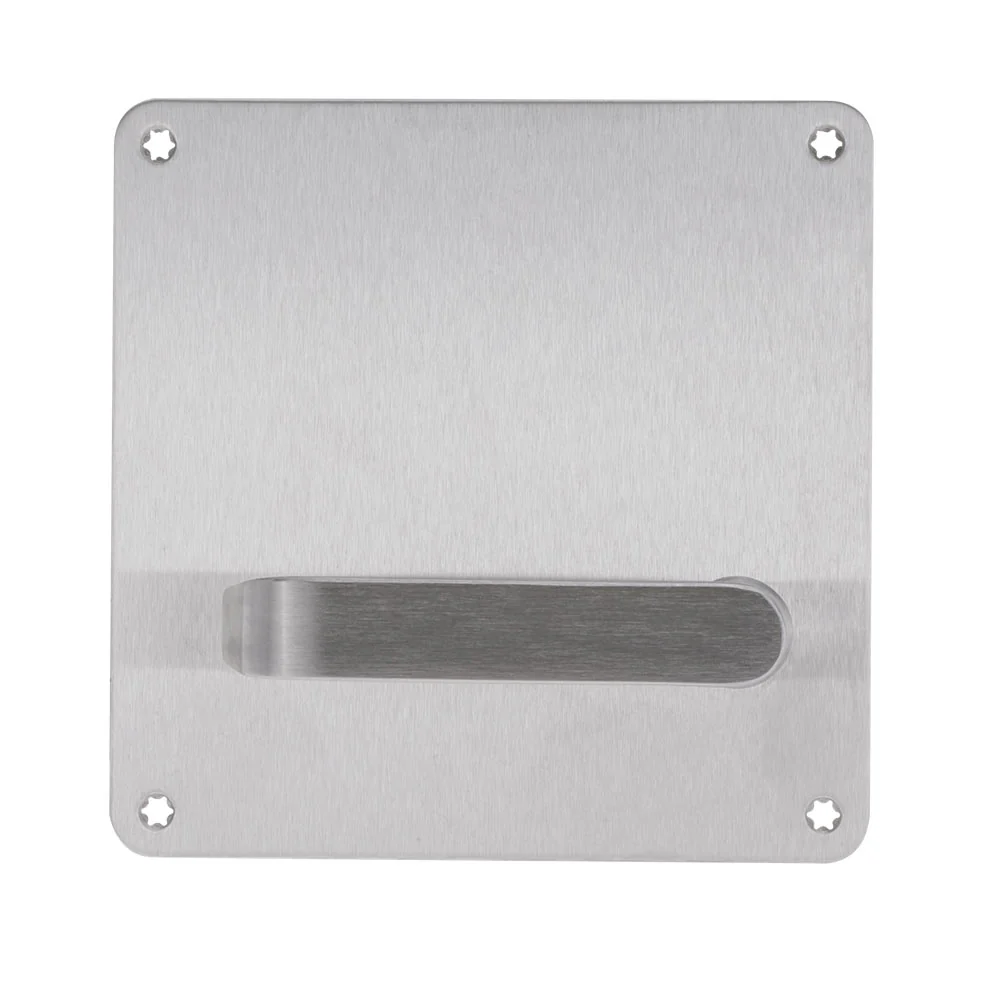

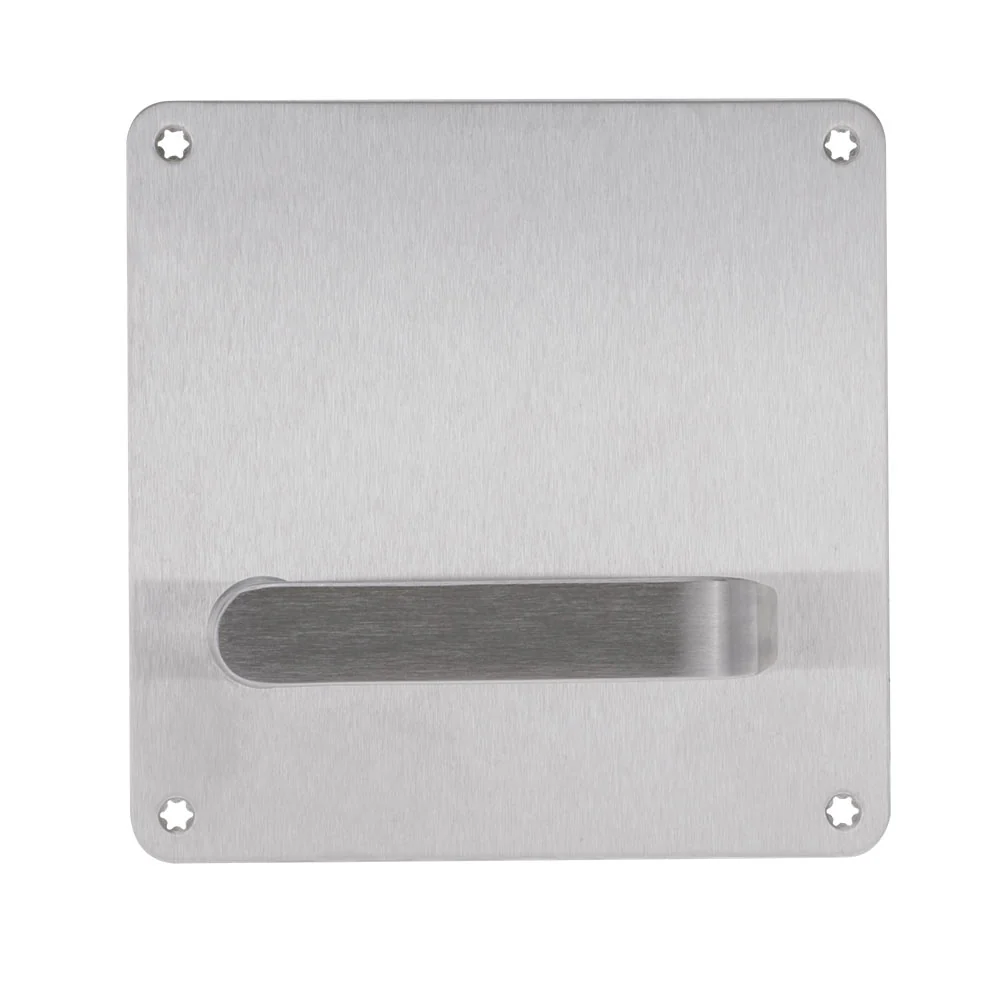

Standard Lever Variants

• 102 Lever – LH / RH

• 111 Lever – LH / RH

• 112 Lever – LH / RH

• 118 Lever – LH / RH

• 142 Lever – LH / RH

• 77 Lever – LH / RH

• 144 Lever – LH / RH

• 59 Lever – LH / RH

• 70 Lever – LH / RH

• 90 Lever – LH / RH

• 96 Lever – LH / RH

• 96 Lever – RH Misc Text

• 98 Lever – LH

Pull / Push Handle Variants

• Pull Full Infill – P1 Pull Handle – LH / RH

• Pull Full Infill – P1 Push Handle – LH

• Push Full Infill – P1 Pull Handle – RH

• Pull Outline – P1 Pull Handle – LH / RH

Other Plate / Misc Variants

• Interior Plate

• Female Symbol Outline

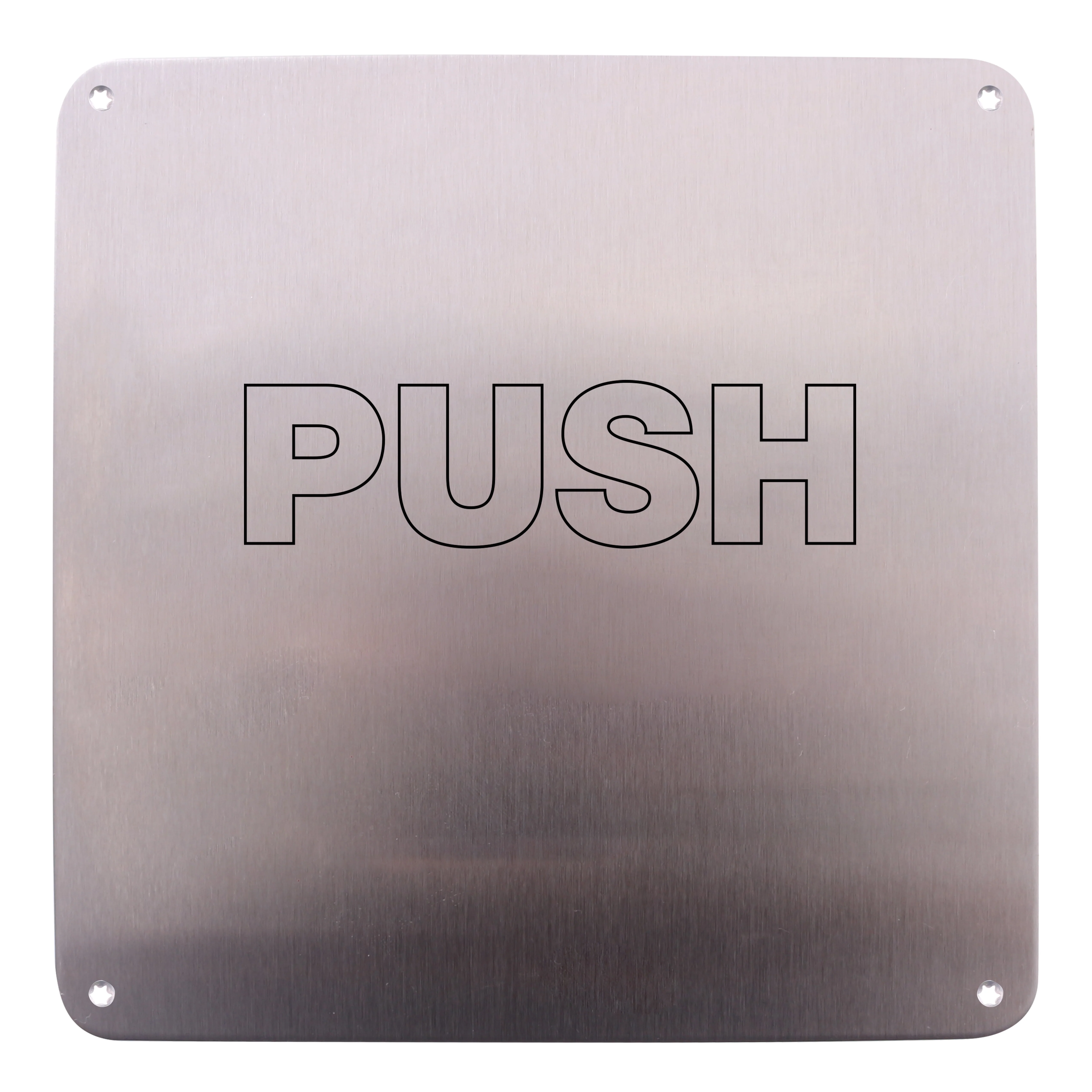

• Push Full Inline (blank)

• Push Outline (blank)

• Pull Outline (blank)

• 75 Pull Handle
